Pictured: Fleischmann Art 7000
Klokanker ombouwset gemaakt voor Roco H0e stoomtreinen artikelnummers 33201, 4100, 33240, 33242, 33261 of andere uitvoeringen van dit model.
Coreless motor conversions kit made for Roco H0e steam trains
Art 33201, 4100, 33240, 33242, 33261 or similar locomotives.
Links:
Klokanker ombouwset gemaakt voor Roco H0e dieseltreinen artikelnummers 31025, 31027, 33204, 33205, 33206, 33207, 33208, 33209 of andere uitvoeringen van dit model.
Coreless motor conversion kit made for Roco H0e diesel trains
Art 31025, 31027, 33204, 33205, 33206, 33207, 33208, 33209 or similar locomotives.
Roco HF110c (all versions)
Coreless motor conversion kit made for Roco H0e model
Suited for art. 31020, 31031, 33230, 33231, 33232, 33233, 33234, 33236, 33237, 33238, 33250, 33261
Another unique and flagship Tramfabriek product. The drive has a plastic frame with coreless motor. Available in different configurations. It is hand built to order. Delivery time is varied, depending on time available. Currently it will be about 3-4 weeks.
These are not offered with flywheels, as the effect of a small flywheel does not work with a belt drive (science!).
The slow speed is ideal for small shunters or steam trams.
Comes with two spare nitrile belts, two M1.6 mounting screw and two M1.6 nuts.
* It might be that a certain chosen figuration is technically not possible, but if that is the case, you'll be contacted to discuss the options.
Available wheelbases: 13.8 mm, 16 mm, 17 mm, 19.5 mm, 20.7 mm
Art BUSCH 12V coreless motor replacement for any Busch H0f model
Works great on both 3V and 12V systems.
The kit includes:
1 x 12V coreless 6x15mm motor with 1 shaft (Ø 0.8mm)
1 x Motor adapter ID 0.8 mm OD 1.5 mm
ATTENTION!! Busch motor chassis NOT included!
Art. BASKAR Coreless motor conversion Skarloey
1 x 12V coreless motor
ATTENTION!! Bachmann model NOT included!
Egger-Bahn and Jouef Ultimate Motor Upgrade
Fits all Egger-Bahn and Joueff models.
The 12V coreless motor is mounted on a bracket and simply replaces the original motor. You’ll be impressed with the improved driving capabilities. The model now can run very well at slow speeds.
The new conversion is available as a kit or, for easy installation, pre-assembled. As there are no replacements available for the worm and the diameter of the motor shaft is different between some models (1.2, 1.5 or 1.8 mm), the old worm has to be taken off and to be fitted with the supplied adapters.
Also available: coupling rods
Bemo VI K/VII K H0e 1006/1008 series
Coreless motor conversion kit made for Bemo VI K/VII K H0e 1006/1008 series (without flywheel)
For example DR 99 651 or similar locomotives. Adapter box size 9.65 x 18 x19 mm.
Bemo VI K/VII K H0e 1006/1008 series
(With flywheel)

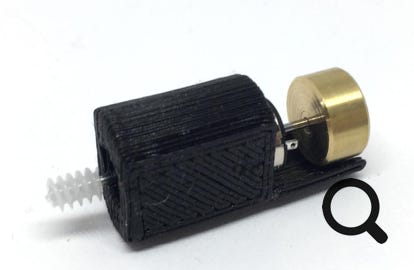

Coreless motor conversion kit made for Bemo VII K H0e 1008 series (with flywheel)
For example DR 99 651 or similar locomotives. Adapter box size 9.65 x 18 x19 mm. Flywheel 10 x 5 mm (picture shows thinner flywheel than supplied with the kit)
Bemo V51, V52, BR 251 series
Coreless motor conversion kit for Bemo V51, V52, BR 251 series
For H0e/m model. For example Bemo Art 1001/3, 1001 801 (V52 901), 1001 802 (V51 902), 1001 803 (V51 903), 1001 813 (251 903-1)
Bemo HF 130 c, V18, ÖBB 2092
Coreless motor conversion kit for Bemo HF 130 c, V18, ÖBB 2092
For H0e model. For example Bemo Art 1011962, 1011863, 1011852, 1011853, 1011854, 1011808, 1011971 (among others).
Contents of the kit:
1x 8x16 mm motor with one shaft
1x motor casing
1x brass adapter for original worm
Watch a performance video by clicking here
Bemo Wismar railbus ‘Schweineschäuzchen’ (all versions)
Bemo Fliegender Spreewalder
Art BESPREE 12V Coreless motor conversion kit
For H0e/H0m models.. For Bemo Art 1233 833, 1233 813.
Contents of the kit:
1x 8x16 mm motor with two shafts
1x motor casing
2x brass adapters for worm/flywheel
There have been three versions of this model through the years. Go to the dedicated page to make sure you get the correct 12V coreless motor upgrade kit.
Coreless motor conversion kit for Swiss Tm 2/2
Contents of the kit:
1x 0816S motor
1x motor casing
1x brass motor shaft adapter
ATTENTION!! Bemo model and gear NOT included!
Coreless motor conversion kit for RhB Ge 4/4
Contents of the kit:
1x 1015D motor
2x brass motor shaft adapter
1x plastic insert
ATTENTION!! Bemo model and gears NOT included!
Coreless motor conversion kit for Decauville
Contents of the kit:
1x 0816D motor
1x motor casing
1x brass motor shaft adapter
1x flywheel
ATTENTION!! Jouef model and gear NOT included!
Kato 11-109
Replacement of 11-103.
With factory installed coreless motor and flywheel.
Kato 11-110
Replacement of 11-104.
With factory installed coreless motor and flywheel.
Coreless motor conversion kit for Liliput 2095
Contents of the kit:
1 x 12V coreless motor with 2 shafts
1 x Motor adapter casing
2x brass adapter tube
1 x silicone tube (ca 10 mm)
ATTENTION!! Liliput model and gears NOT included!
Liliput U (H0e, all versions)
There have been three versions of this model through the years. Go to the dedicated page to make sure you get the correct 12V coreless motor upgrade kit.
LITHOM
Upgrade kit includes:
1x 12V coreless motor
1x Casing
1x Worm
Liliput model not included!
MIOMZF
Upgrade kit includes:
2x Deutz factory shields
1x Control panel (not functional)
Minitrains model not included!
Out of production
•
