NEW Single LED light board
In cooperation with Train-O-Matic, the Tramfabriek has some great offers on LED lighting solutions.
Lighting strips for carriages. Works on 12V-18V and one or both of the capacitors can be connected as power buffer for stutter free light.
The Shine Plus Mini kit includes:
1 x LED strip 120 mm x 6 mm
2 x Capacitors 6.5 mm x 12 mm
LED strip can be cut to the required size. Minimum length is 60 mm.
Works on both analogue and digital systems.
Supply voltage 6-24V for DC, 4-16V for AC.
Will fit any Dapol N gauge model with 3 pin plug. Wires have to be cut the the desired size, then soldered to contacts.
See fitting example below.
LT1 Locomotive lights cold white and red (separate circuits) by Train-O-Matic.
Distance white LED lights horizontally: 20.5 mm
Distance white LED Light vertically: 9 mm
Works on both analogue and digital systems.
LT2 Locomotive lights warm white and red (separate circuits) by Train-O-Matic.
Distance white LED lights horizontally: 20.5 mm
Distance white LED Light vertically: 9 mm
Works on both analogue and digital systems.
Sizes LT1 and LT2
FDT 01 Rear lights to install in train coach by Train-O-Matic.
LED lights are 22.5 mm apart.
Works on both analogue and digital systems.
FDT 02 Rear lights to install in train coach by Train-O-Matic.
LED lights are 22.5 mm apart.
Works on both analogue and digital systems.
Sizes FDT 01
Sizes FDT 02
Single LED with resistor. Without light effect. Connect to decoder for light effect, if desired.
Power 6-24 Volt DC
Size: 4.7 x 5.2 mm
Manual available here: https://train-o-matic.com/downloads.html

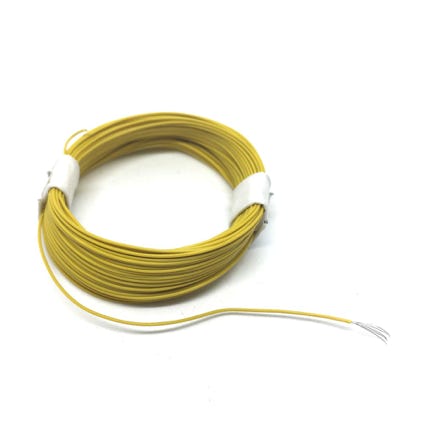

The best wire for internal model train electronics: very flexible and extremely thin. Probably thinner than you think and more than you hoped for!
•
